5HPX-20C-20 Tons
| Brand Name: | PRESUN |
| Certification: | ISO |
| Model Number: | 5HPX-20C |
| Capacity: | 20 to 30 Tons |
| Minimum Order Quantity: | 1 SET |
| Payment Terms: | L/C, T/T, OA |
| Place of Original: | Anhui, China |
- Open Policy for Distributor
- Techincal Support 24/7
- Welcome to Visit Our Factory
Product Description

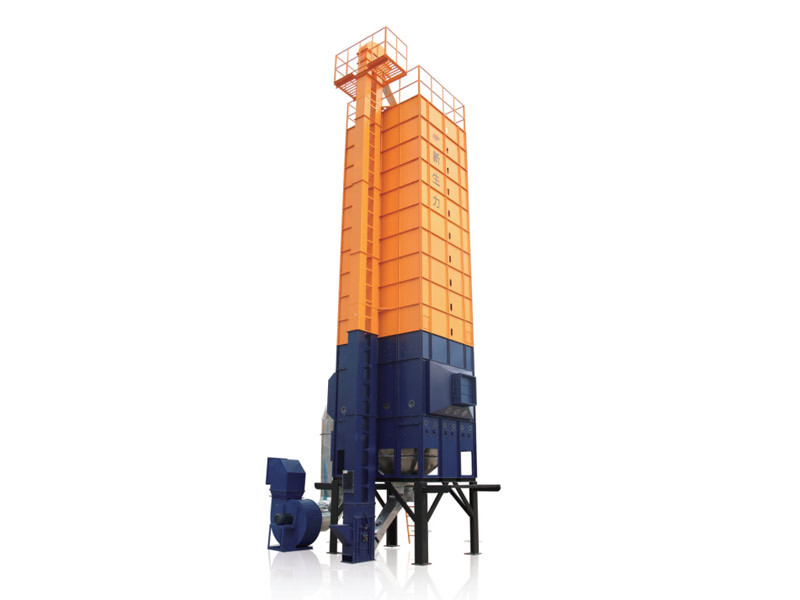

The Model 5HPX-20C Low-Temperature Circulating Grain Dryer features an innovative screwless conveying design, complemented by a tubular grain inlet and outlet system. This structural configuration minimizes grain breakage during the drying process while simultaneously achieving energy efficiency and reducing equipment failure rates. Equipped with a fully automated control system, the machine offers ease of operation; its built-in automatic moisture detection device ensures precise regulation of grain moisture content, thereby guaranteeing optimal drying results. This dryer is suitable for drying paddy rice, wheat, corn, sorghum, and various types of grain seeds.
| Parameter Configuration | |||
| Dryer Model | 5HPX-20C | ||
| Dryer type | Batch loop | ||
| Drying capacity t. %/h | ≥13 (rice, wheat) | Processing capacity | ≥960 (kg/h) |
| Capacity (t) | Rice (bulk density 560 kg/m3） | 20 | |
| Wheat (bulk density 700 kg/m | 27.5 | ||
| Volume (m3) | 37.2 | Total weight (kg) | 4500 |
| Machine size | Dryer Body: 2173x2574x10917      Overall Dimensions：4045x4640xl2872 | ||
| Combustion furnace | Type | Indirect Ignition | |
| Ignition Method | Manual Ignition | ||
| Fuel Consumption (kg/h) | ≤50 (rice husk) | ||
| Use fuel | Biomass (rice husks, straw, firewood), coal | ||
| Power Supply | 3-Phase 380V / 50Hz | ||
| Supporting power | Total power (kW) | 10.686 | |
| performance | Feeding time | Paddy Rice / Wheat（min) | 50-60/50-60 |
| Feeding time | Paddy Rice / Wheat（min) | 50-60/50-60 | |
|        Feeding time | Paddy Rice / Wheat（min) | 0.6-1.2/0.6-1.2 | |
| Security Configuration | Overload device, Temperature control device, Control fuse, Leakage protection device, Ai Pressure switch |
||
You May Want To Know
Which crops can Presun grain dryer machines process?
Our grain dryer machines are highly versatile and designed to process a wide variety of cereal grains. They are ideal for drying paddy rice, corn (maize), wheat, soybeans, rapeseed, and other oilseeds. The low-temperature recirculating technology ensures uniform drying without damaging the nutritional value or the physical structure of the seeds.
What is the drying capacity of the Presun 5HPX series?
The Presun 5HPX series offers a broad range of capacities to suit different operational scales. Our most popular industrial models include the 20-ton (5HPX-20B/C) and 30-ton (5HPX-30C) batch dryers. We also provide customized configurations for larger facilities requiring multi-unit synchronized drying lines.
How does the automatic temperature regulator protect grain quality?
The automatic temperature regulator is a core component of our intelligent control system. It monitors the drying heat in real-time and automatically adjusts the burner output. This prevents overheating, which can cause kernel cracking or “yellowing” of rice, ensuring your harvest maintains its premium market grade and high germination rate.
Can I use different fuel sources for the heating furnace?
Yes. Presun drying systems are highly adaptable. While we offer high-efficiency biomass pellet furnaces as a sustainable and cost-effective option, our dryers can also be equipped with burners compatible with natural gas, diesel, or steam heat exchangers, depending on your local energy availability.
How does the grain moisture meter improve drying efficiency
Our integrated grain moisture meter provides real-time, online moisture testing. Instead of manual sampling, the system automatically tracks the moisture level during the drying cycle and triggers an automatic shutdown once the target level is reached. This prevents over-drying, saves fuel, and ensures the exact weight and quality of the grain.
How can international customers contact Presun for a quote?
International clients can reach us through our official website’s contact form. For a faster response regarding the 5HPX grain dryer price or project consulting, you can email our export department directly or message us via WhatsApp/WeChat. We provide professional technical support in English and can arrange video consultations to discuss your specific site requirements.
Does Presun provide on-site installation and training for overseas projects?
Absolutely. We offer comprehensive support for our global partners. Our experienced engineers can be dispatched for on-site grain dryer installation and commissioning. Furthermore, we provide intensive technical training for your local operators on machine maintenance, PLC operation, and drying parameter optimization.
What are the benefits of becoming a Presun regional distributor?
We welcome global partners to join our distribution network. Presun offers exclusive dealer incentive policies, including competitive wholesale pricing, prioritized lead times, and comprehensive marketing materials. We also provide dedicated technical training and a steady supply of genuine spare parts to help you build a strong local service reputation.
