Introduction: The Challenge of Commercial Grain Drying
The success of a rice milling operation depends on a single metric: the head rice yield. Every cracked or crushed grain during the post-harvest stage is a direct hit to your profit margins. As global demand for high-quality rice increases, finding a paddy grain dryer that balances speed with delicate handling has become the industry’s biggest challenge.
Enter the Presun 5HPX-20B. As a leading batch circulating grain dryer, this 20-ton powerhouse is specifically engineered to address the mechanical causes of grain damage. By rethinking the internal conveying and lifting architecture, Presun has set a new standard for grain integrity in the agricultural sector.
Understanding the Batch Circulating Drying Advantage
Why choose a batch circulating system over a continuous-flow system? For high-moisture crops like paddy, circulation is essential for uniformity. The 5HPX-20B moves the grain through drying sections multiple times, ensuring that every kernel reaches the target moisture content without the risk of “sun-cracks” caused by uneven heating.
Innovation 1: Zero-Damage Auger Conveying Structure
The most vulnerable moment for a kernel is during horizontal transport. In traditional industrial rice dryer machines, the auger (screw conveyor) often sits too close to the outer casing, creating a “grinding” effect that shatters the husk and the endosperm.

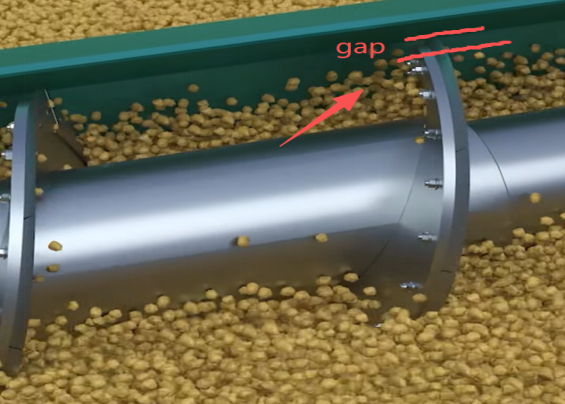

The Presun 5HPX-20B features a precisely engineered gap between the rotating auger and the outer shell. This gap acts as a safety buffer. Instead of being trapped and crushed against the metal wall, the paddy grains flow freely within the conveying channel.
Why this matters for your ROI:
Reduced Fine Dust: Fewer broken grains mean less dust in your system.
Higher Grade Rice: Whole kernels fetch a significantly higher market price than broken ones.
Lower Mechanical Wear: Reduced friction extends the lifespan of the auger itself.
Innovation 2: Advanced Lifting Technology with Triangular Baffles
The vertical stage—conveying grain to the top of the drying tower—is where most leakage occurs. If grains fall out of the elevator buckets, they don’t just disappear; they fall into the mechanical drive components.

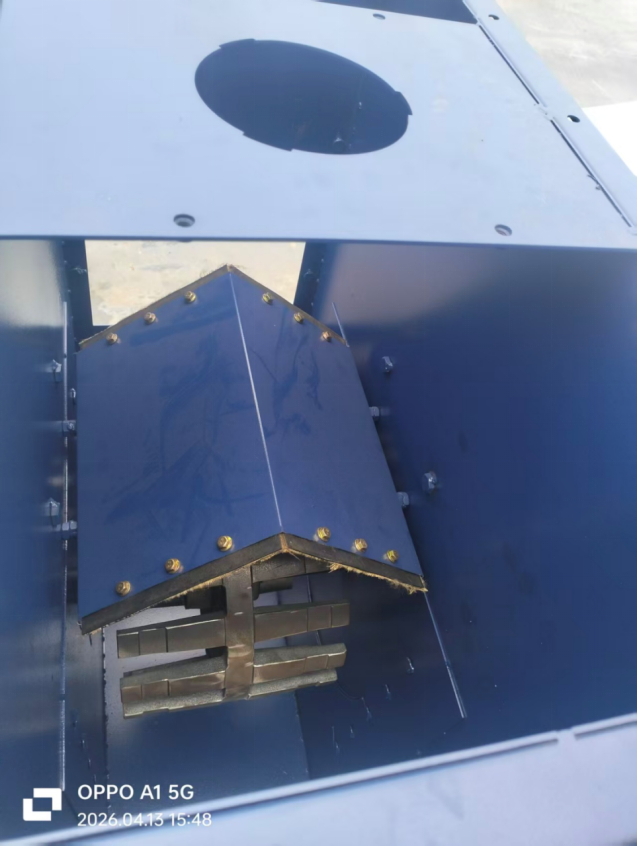

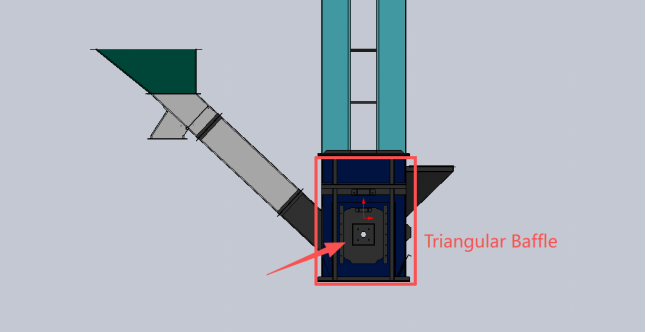

In the Presun 5HPX-20B, we have integrated specialized Triangular Baffles within the lifting stage. This is a critical component for any high-efficiency paddy drying technology.
The Mechanical Solution:
When grain is lifted, these baffles serve as a protective shield. They prevent kernels from leaking into the narrow space between the conveyor rollers and the conveyor belt. In standard dryers, grains caught in this area are instantly crushed by the tension of the rollers. By eliminating this “crushing zone,” the 5HPX-20B further secures your yield rate, ensuring that the 20 tons you put in are the 20 tons you get out—intact and high-quality.
Technical Specifications: 20-Ton Batch Circulating Power
For commercial mills comparing 20-ton grain dryer specifications, the 5HPX-20B offers a robust profile:
Batch Capacity: 20,000kg (20 Tons)
Drying Rate: Highly efficient moisture reduction (approx. 0.5% – 1% per hour depending on ambient conditions).
Power Efficiency: Optimized for 3-phase 380V industrial standards.
Heat Compatibility: Seamlessly integrates with the 5LXSL-60 Rice Husk Furnace] for low-cost biomass energy.
How to Reduce Grain Breakage During Drying: Expert Tips
Beyond choosing the right equipment, like the paddy grain dryer 5HPX-20B, operators should follow these best practices:
Monitor Tempering Periods: Allow the grain to “rest” between drying cycles.
Control Air Temperature: Avoid excessive heat that can cause thermal stress.
Regular Maintenance: Ensure the triangular baffles and auger gaps are free from debris to maintain the “zero-crush” environment.
Investing in Presun Quality
Choosing a batch circulating grain dryer manufacturer is about choosing a partner in your farm’s productivity. The Presun 5HPX-20B isn’t just a machine; it’s a solution to the age-old problem of harvest loss. By protecting the grain at every stage—from the horizontal auger to the vertical lift—we ensure your agricultural business remains profitable and sustainable.
